Material:E-Cu
Surfacetreatment:Tin-plated
Product Property: It is used to connect the copper conductor end.It has aviewing window to check the conductor location . And its bell mouth is specially designed to accmmodate fine strand flexible conductors. Because fine stranded cables have a larger diameter than normal calbes. And they tend to splay out after stripping. JGB lugs which funnel the strands into the lugand make conductor insert easily
|

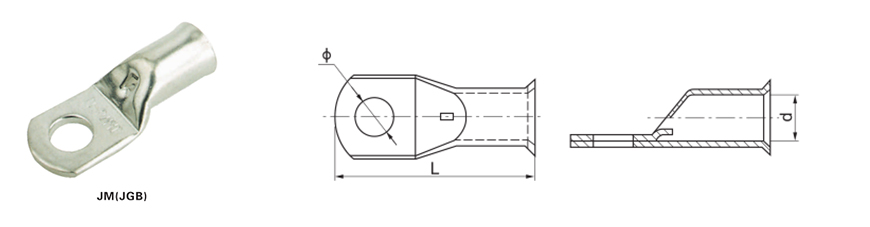

Type
|
Dimensions(mm)
|
|
L
|
d
|
Φ
|
|
JM(JGB)6-5
|
25
|
3.7
|
5.2
|
|
JM(JGB)6-6
|
25
|
3.7
|
6.5
|
|
JM(JGB)6-8
|
25
|
3.7
|
8.4
|
|
JM(JGB)10-6
|
26
|
4.5
|
6.5
|
|
JM(JGB)10-8
|
26
|
4.5
|
8.4
|
|
JM(JGB)10-10
|
28
|
4.5
|
10.3
|
|
JM(JGB)16-6
|
28.5
|
5.7
|
6.5
|
|
JM(JGB)16-8
|
30.5
|
5.7
|
8.4
|
|
JM(JGB)16-10
|
31
|
5.7
|
10.5
|
|
JM(JGB)25-6
|
33.5
|
7.2
|
6.5
|
|
JM(JGB)25-8
|
35
|
7.2
|
8.4
|
|
JM(JGB)25-10
|
35
|
7.2
|
10.5
|
|
JM(JGB)35-6
|
37.5
|
8.5
|
6.5
|
|
JM(JGB)35-8
|
38
|
8.5
|
8.5
|
|
JM(JGB)35-10
|
39
|
8.5
|
10.5
|
|
JM(JGB)35-12
|
39
|
8.5
|
13
|
|
JM(JGB)50-6
|
43.5
|
9.8
|
6.5
|
|
JM(JGB)50-8
|
45
|
9.8
|
8.5
|
|
JM(JGB)50-10
|
45
|
9.8
|
10.5
|
|
JM(JGB)50-12
|
45
|
9.8
|
13
|
|
JM(JGB)70-8
|
50
|
11.5
|
8.5
|
|
JM(JGB)70-10
|
51.5
|
11.5
|
10.5
|
|
JM(JGB)70-12
|
51.5
|
11.5
|
13
|
|
JM(JGB)95-10
|
58.5
|
13.7
|
10.5
|
|
JM(JGB)95-12
|
58.5
|
13.7
|
13
|
|
JM(JGB)120-12
|
65
|
15
|
13
|
|
JM(JGB)120-14
|
65
|
15
|
14.7
|
|
JM(JGB)120-16
|
66.5
|
15
|
17
|
|
JM(JGB)150-10
|
73
|
16.7
|
10.5
|
|
JM(JGB)150-12
|
73
|
16.7
|
13
|
|
JM(JGB)150-14
|
73
|
16.7
|
14.7
|
|
JM(JGB)150-16
|
73
|
16.7
|
17
|
|
JM(JGB)185-12
|
80
|
19.2
|
13
|
|
JM(JGB)185-14
|
80
|
19.2
|
14.7
|
|
JM(JGB)185-16
|
80
|
19.2
|
17
|
|
JM(JGB)240-16
|
92.5
|
21
|
17
|
|
JM(JGB)240-20
|
92.5
|
21
|
21
|
|
JM(JGB)300-16
|
--
|
24
|
--
|
|
JM(JGB)300-20
|
--
|
24
|
--
|
|
JM(JGB)400-16
|
--
|
27
|
--
|
|
JM(JGB)400-20
|
--
|
27
|
--
|
|
JM(JGB)500-16
|
--
|
30
|
--
|
|
JM(JGB)500-20
|
--
|
30
|
--
|
|
JM(JGB)630-20
|
--
|
35
|
--
|
|
JM(JGB)630-22
|
--
|
35
|
--
|
|
JM(JGB)800-22
|
--
|
39
|
--
|
|
JM(JGB)1000-22
|
--
|
44
|
--
|
|
|
|
|
|
