Cable And Wire Terminals

Code:TM
Cable Size:
Description:


Material:E-Cu
Surface treatment: Tin-plated mini 3 microns
Product Property: For smaller contact area or space,such as aconnection of MCCB, a narrow plan lug is required.TM is special designed for such a connection.

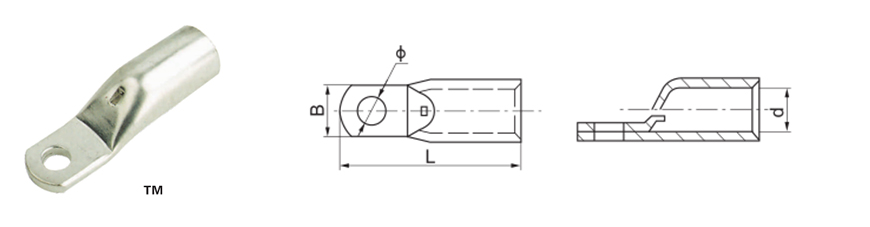

Type

Dimensions(mm)

L

d

B

Φ

TM 10-5

27

4.3

9

5.3

TM 16-5

31

5.6

9

5.3

TM 25-5

35

7

9

5.3

TM 35-6

40.5

8.4

11.5

6.4

TM 50-8

45.5

9.5

12.8

8.4

TM 70-8

49

11.2

12.8

8.4

TM 95-8

54

13.5

15.5

8.4

TM 120-8

68

15.6

19

8.4

TM 120-10

68

15.6

19

10.5

TM 150-8

75

16.7

19

8.4

TM 150-10

75

16.7

19

10.5

TM 185-10

79

19

24.5

10.5

TM 240-10

86

21.1

29.8

10.5

TM 240-12

92

21.1

29.8

13.2

TM 240-16

100

21.1

29.8

17

TM 300-12

97

23.7

31

13.2
