Cable And Wire Terminals
Code:DT
Cable Size:
Description:
Material:E-Cu
Surface treatment: Bright
Product Property:It is used to connect the copper conductor end
|

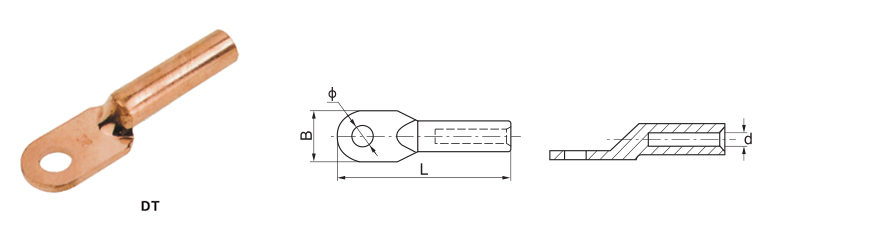

Type |
Dimensions(mm) |
|||
|
L |
d |
B |
Φ |
|
|
DT 10-6 |
59 |
4.7 |
13.5 |
6.5 |
|
DT 16-8 |
67 |
5.7 |
16 |
8.5 |
|
DT 25-8 |
70 |
7.2 |
17.5 |
8.5 |
|
DT 35-10 |
78 |
8.5 |
20 |
10.5 |
|
DT 50-10 |
87 |
9.7 |
23 |
10.5 |
|
DT 70-12 |
95 |
11.5 |
26 |
12.5 |
|
DT 95-12 |
105 |
13.5 |
28 |
12.5 |
|
DT 120-14 |
112 |
15 |
31 |
14.5 |
|
DT 150-14 |
116 |
16.5 |
35 |
14.5 |
|
DT 185-16 |
125 |
18.5 |
37.5 |
17 |
|
DT 240-16 |
134 |
21 |
40 |
17 |
|
DT 300-18 |
150 |
23.5 |
44.5 |
18.5 |
|
DT 400-20 |
160 |
26.5 |
50 |
21 |
