Cable And Wire Terminals
Code:WCJC
Cable Size:
Description:
Material: Brass
Suface treatment: Nickle plated
Products property: It is fixed by bolts and used in the connections between the electrical equipment with cable and the indoor distribution equipment. They can be reused many times.

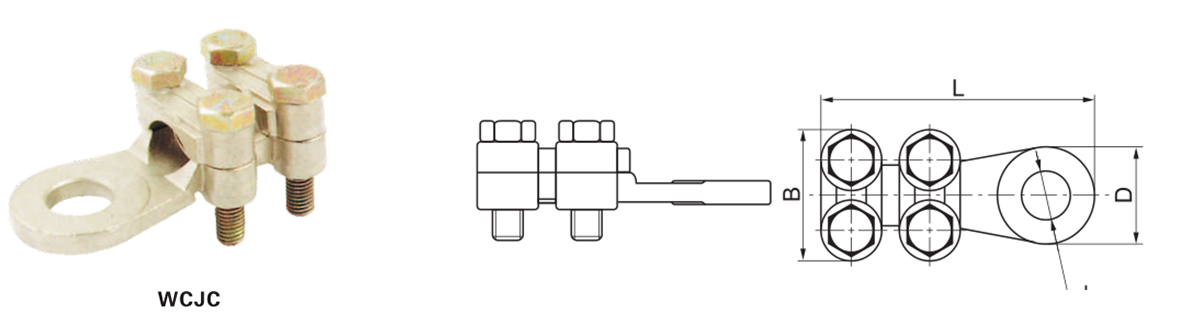

Type |
Dimensions(mm) |
|||
L |
D |
B |
Φ |
|
WCJC 16-8 |
37 |
16 |
21.5 |
8 |
WCJC 25-35-10 |
48 |
22 |
23 |
11 |
WCJC 50-70-10 |
61 |
23 |
30 |
11 |
WCJC 70-95-12 |
66.5 |
27 |
33 |
13 |
WCJC 120-150-14 |
73 |
32 |
36 |
15 |
WCJC 185-240-16 |
91 |
39 |
46 |
17 |
WCJC 300-20 |
105 |
45.5 |
55 |
21 |
WCJC 400-22 |
122 |
50 |
60 |
23 |
