Material:E-CU A1-99.5%
Surface treatment:Bright
Product property:Due to the coupling effect when aluminium comes in contact with copper corrosion will happen in a short time currently the best solution os to use aluminium-copper bimetal connectors,A bimetal link should be used for joint the friction welding is well done and its aluminium barrel capped is filled with joint compaound to avoid oxidization

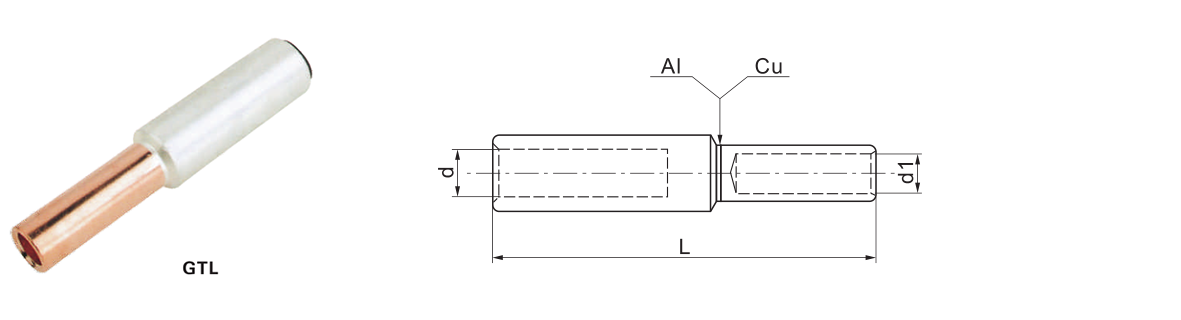

Type
|
Dimensions(mm)
|
L
|
d
|
d1
|
GTL-AL25/CU16
|
70
|
6.8
|
5.5
|
GTL-AL35/CU16
|
76
|
8
|
5.5
|
GTL-AL35/CU25
|
82
|
8
|
7
|
GTL-AL50/CU25
|
85
|
9.8
|
7
|
GTL-AL50/CU35
|
90
|
9.8
|
8.2
|
GTL-AL70/CU35
|
95
|
11.2
|
8.2
|
GTL-AL70/CU50
|
100
|
11.2
|
10
|
GTL-AL95/CU50
|
105
|
13.2
|
10
|
GTL-AL95/CU70
|
110
|
13.2
|
11.5
|
GTL-AL120/CU70
|
116
|
14.7
|
11.5
|
GTL-AL120/CU95
|
118
|
14.7
|
13.5
|
GTL-AL150/CU95
|
120
|
16.3
|
13.5
|
GTL-AL150/CU120
|
122
|
16.3
|
15.5
|
GTL-AL185/CU120
|
128
|
18.3
|
15.5
|
GTL-AL185/CU150
|
130
|
18.3
|
17
|
GTL-AL240/CU150
|
132
|
21
|
17
|
GTL-AL240/CU185
|
135
|
21
|
19
|
GTL-AL240/CU240
|
140
|
121
|
21.5
|
GTL-AL300/CU240
|
145
|
23.3
|
21.5
|
GTL-AL300/CU300
|
150
|
23.3
|
24.5
|
|
|
|
