Code:SMF-3
Cable Size:
Description:
The SMF-3 ,Industry-Standard design ,400A rated fused Cut-out is one of our best selling products .

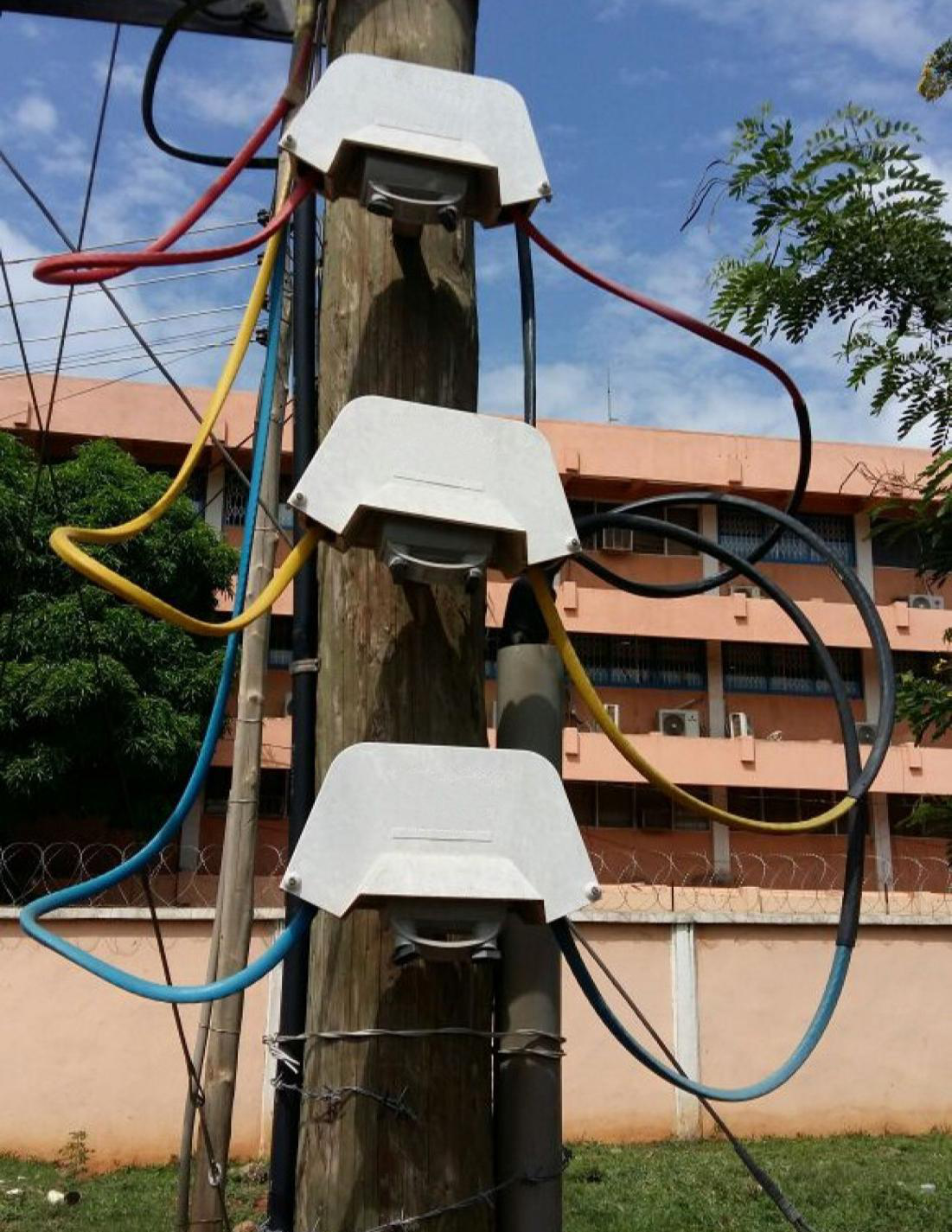

Designed with ease of use and simplicity in mind ,this pole mountablc fused Cut-out is the ideal method of providing rural dwellings with a safe ,protected and reliable ,Low Voltage power supply .
Manufactured from our own track resistant grade of Glass Re-inforced Polyester this fused Cut-out is unobtrusive in appearance and vandal resistant ,when compared to many of the more traditional materials such as porcelain .
Each fused Cut-out has fuse contacts and cable terminal plates which are manufactured from copper and bright tinned .These plates incor porate M12 captive studs with nuts and washers for the reception of cable sockets(lugs)up to 300mm2(*compression type only at 300mm2) with copper or aluminium conductors For ease of mounting to either a wall or a wooden pole ,the fused Cut-out is supplied with an M12 coach screw For cross-arm type mounting the Fused Cut-out can be supplied with an M12 nut ,bolt and washer .
Model |
Fixing Arrangement |
54611-18 |
400A Fused Cut-out for pole or wall mounting c/w M12 coach screw |
54611-06 |
400A Fused Cut-out for cross-arm mounting c/w M12 bolt ,nut and washer |
58424-03 |
Spare fuse carrier |
Note：
Stepped washers recommended if lug palm has hole l6mm or greater .
Fuselinks
This fused Cut-out is designed to accommodate standard wedge type fuselinks to BS88 Part 5：1988 .Tested and approved for category of duty 415 AC 80 .
Fixing centre requirement is 82mm .
Standard fuselink ratings range from 20 to 400A .
