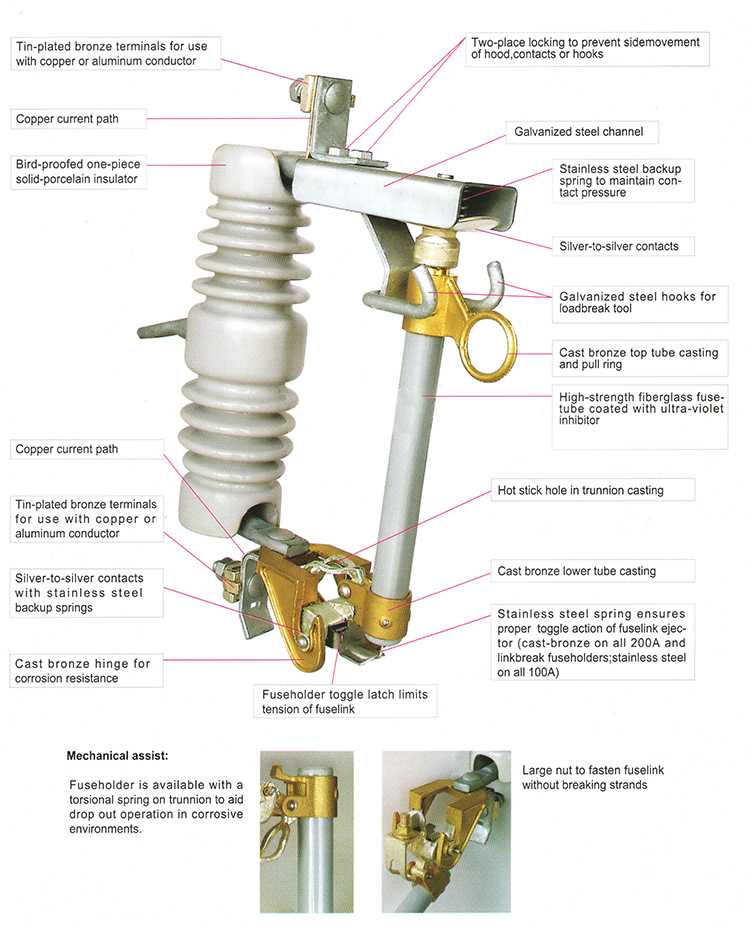

Code:High Voltage Drop Out Fuse
Cable Size:
Description:
Application
The primary purpose of any Cut-out Fuse is to provide protection to the lines of your system and the various apparatus on those lines such as transformers and capacitor banks. Cutout fuse provide reliable protection from low-level overloads that just melt the fuse link, intermediate faults, and very high faults, through maximum interrupting capacity.
Technical Data:
Type |
Rated Voltage |
Rated Current |
Breaking Current |
Impulse Voltage |
Power-frequency withstand voltage |
Leakage distance |
(kV) |
(A) |
(BIL) |
(kV) |
(mm) |
(kg) |
|
SM-1 |
12 |
100 |
6.3 |
110 |
40 |
250 |
SM-1 |
12 |
200 |
8 |
110 |
40 |
250 |
SM-2 |
15 |
100 |
10 |
125 |
45 |
320 |
SM-2 |
15 |
200 |
12 |
125 |
45 |
320 |
SM-3 |
24 |
100 |
8 |
150 |
65 |
530 |
SM-3 |
24 |
200 |
10 |
150 |
65 |
530 |
SM-4 |
15 |
100 |
10 |
125 |
45 |
350 |
SM-4 |
15 |
200 |
12 |
125 |
45 |
350 |
SM-5 |
12 |
100 |
6.3 |
110 |
40 |
250 |
SM-5 |
12 |
200 |
8 |
110 |
40 |
250 |
SM-6 |
15 |
100 |
10 |
125 |
45 |
320 |
SM-6 |
15 |
200 |
12 |
125 |
45 |
320 |
SM-7 |
24 |
100 |
8 |
150 |
65 |
540 |
SM-7 |
24 |
200 |
10 |
150 |
65 |
540 |
SM-7(F) |
33 |
200 |
12 |
170 |
70 |
720 |
SM-8 |
33 |
100 |
10 |
170 |
70 |
720 |
SM-8 |
33 |
200 |
12 |
170 |
70 |
720 |
