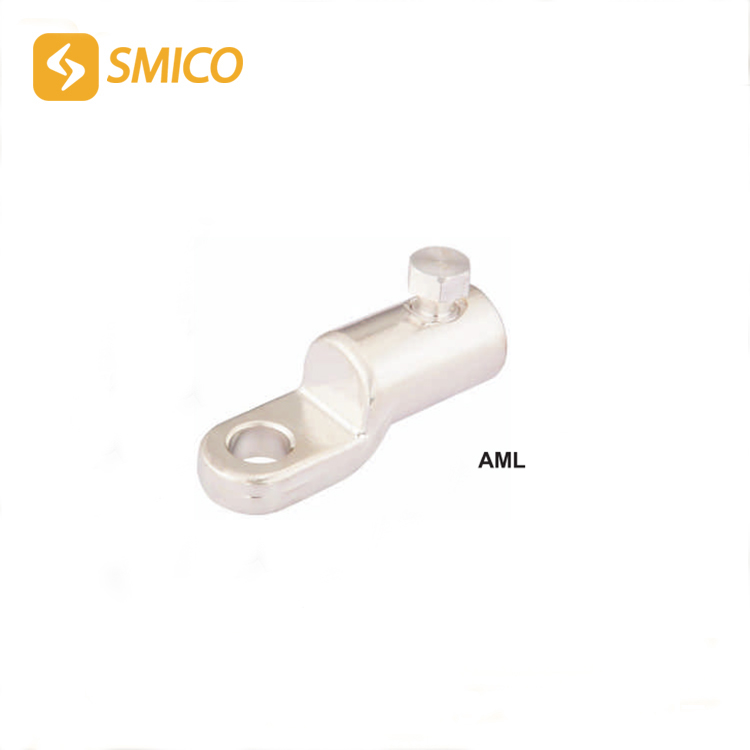

Cable And Wire Terminals
Code:
Cable Size:AML
Description:
Characteristics:
1.Total cross-section:25-400mm
2.Pr-engineered design for perfect fit in medium voltage cable accessories upto 42KV.
3.Lugs are suitable for out door and indoor applications.
4.Connector and lug bodies are made of a high-tensile ,tin plated aluminium alloy.
5.Lugs are suitable for outdoor and indoor appilcations and are available with different hole sizes.

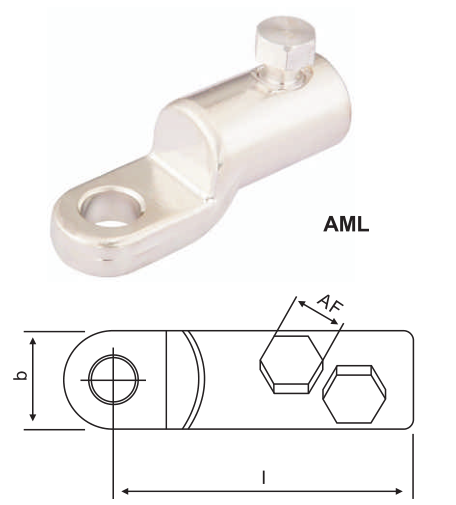

Bolt Size | Code | Dimension(mm) | Bolt Quantity | |||
B | L | AF | ||||
25-95 | M-12 | AML25/95-13 | 24 | 60 | 13 | 1 |
M-16 | AML25/95-17 | |||||
35-150 | M-12 | AML35/150-13 | 28 | 86 | 16 | 1 |
M-16 | AML35/150-17 | |||||
95-240 | M-12 | AML95/240-13 | 33 | 112 | 19 | 2 |
M-16 | AML95/240-17 | |||||
M-20 | AML95/240-21 | |||||
120-300 | M-12 | AML120/300-13 | 37 | 115 | 24 | 2 |
M-16 | AML120/300-17 | |||||
185-400 | M-12 | AML185/240-13 | 42 | 137 | 24 | 3 |
M-16 | AML185/240-17 | |||||
M-20 | AML185/240-21 | |||||
