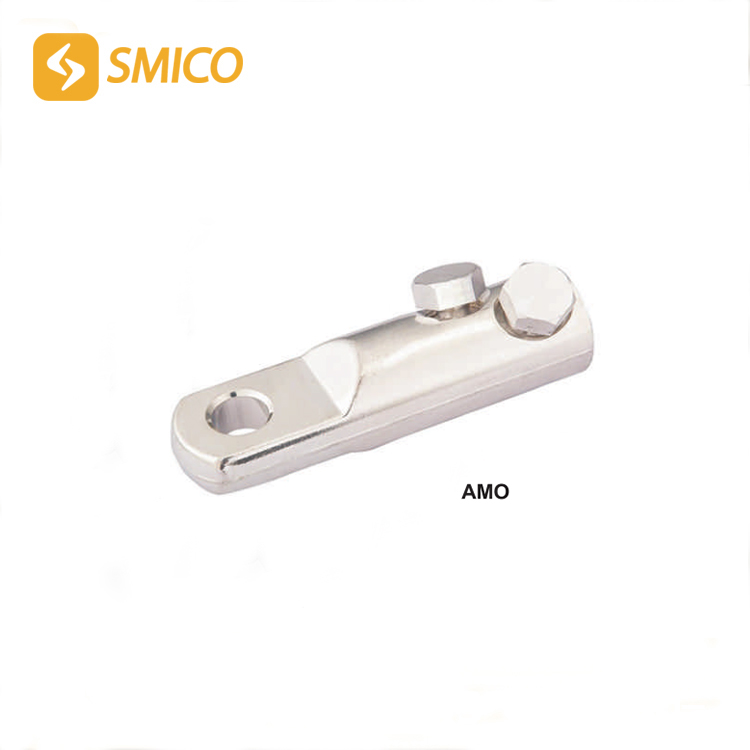

Cable And Wire Terminals
Code:AMO
Cable Size:
Description:
Characteristics:
1.Total cross-section:25-400mm
2.Pr-engineered design for perfect fit in medium voltage cable accessories upto 42KV.
3.Lugs are suitable for out door and indoor applications.
4.Connector and lug bodies are made of a high-tensile ,tin plated aluminium alloy.
5.Use in cable accessories.

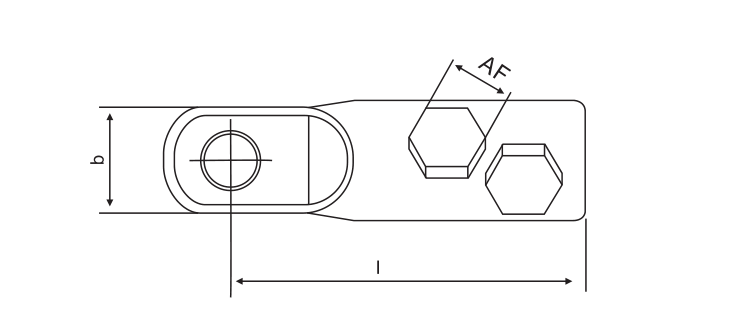

Cable Size(mm2) | Size of Bolt | Code | Dimension(mm) | Bolt Quantity | ||
B | L | AD | ||||
25-95 | M16 | AMO25/95-16 | 34 | 80 | 13 | 1 |
95-240 | M16 | AMP95/240-16 | 34 | 120 | 19 | 2 |
185-300 | M16 | AMO185/300-16 | 34 | 115 | 22 | 2 |
240-400 | M16 | AMO240/400-16 | 34 | 115 | 24 | 3 |
