Code:Stainless Steel
Cable Size:
Description:
1 .Band and buckle can be quickly formed to suit virtually any diameter .

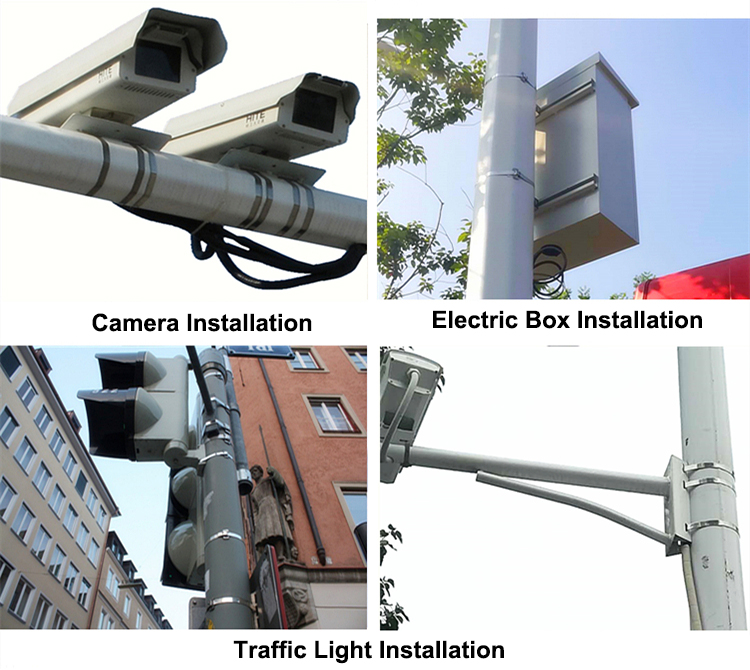

2 .Applications include hose clamps ,pipes ,signs ,cables ,especially where superior strength is required .
3 .Dispensers-Handy plastic dispensers available with certre turn facility and pocket for buckles .
4 .Excellent corrosioin resistance .
Type 304 Stainless Steel
Model |
Width |
Thickness |
Weight |
|||
|
Im . |
mm |
Im . |
mm |
Ibs |
kg |
|
|
SMB1450 |
1/4 |
6.35 |
0.020 |
0.50 |
1.76 |
0.80 |
|
SMB3850 |
3/8 |
9.53 |
0.020 |
0.50 |
2.64 |
1.20 |
|
SMB1276 |
1/2 |
12.70 |
0.030 |
0.76 |
5.50 |
2.50 |
|
SMB5876 |
5/8 |
15.88 |
0.030 |
0.76 |
7.04 |
3.20 |
|
SMB3476 |
3/4 |
19.05 |
0.030 |
0.76 |
8.27 |
3.76 |
Availble in mill coil lengths .All size in standard cardboard packing .
Type 304 Stainless Steel
Model |
Width |
Thickness |
Weight |
|||
|
Im . |
mm |
Im . |
mm |
Ibs |
kg |
|
|
SMB3850 |
3/8 |
9.53 |
0.020 |
0.50 |
3.08 |
1.40 |
|
SMB1276 |
1/2 |
12.70 |
0.030 |
0.76 |
5.94 |
2.70 |
|
SMB5876 |
5/8 |
15.88 |
0.030 |
0.76 |
7.48 |
3.40 |
|
SMB3476 |
3/4 |
19.05 |
0.030 |
0.76 |
8.71 |
3.96 |
Customers can assign different colors for different sizes .

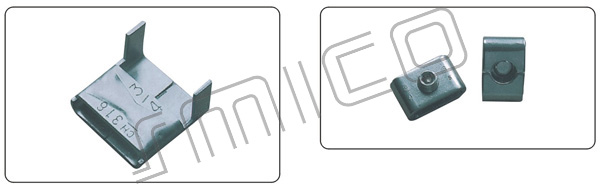

Tooth type
Model |
For band width |
Thickness |
|
|
Inch |
mm |
mm |
|
|
SMBT14 |
1/4 |
6.35 |
0.8 |
|
SMBT38 |
3/8 |
9.53 |
1.0 |
|
SMBT12 |
1/2 |
12.70 |
1.2 |
|
SMBT58 |
5/8 |
15.88 |
1.2 |
|
SMBT34 |
3/4 |
19.05 |
1.5 |
|
SMBT1 |
1 |
25.40 |
1.8 |
|
SMBT114 |
1 1/4 |
32.50 |
2.0 |
L type
Model |
For band width |
Thickness |
|
|
Inch |
mm |
mm |
|
|
SMBL14 |
1/4 |
6.35 |
0.6 |
|
SMBL38 |
3/8 |
9.53 |
0.7 |
|
SMBL12 |
1/2 |
12.70 |
0.7 |
|
SMBL58 |
5/8 |
15.88 |
0.8 |
|
SMBL34 |
3/4 |
19.05 |
1.0 |
LX type
Model |
For band width |
Thickness |
|
|
Inch |
mm |
mm |
|
|
SMBLX14 |
1/4 |
6.35 |
0.6 |
|
SMBLX38 |
3/8 |
9.53 |
0.7 |
|
SMBLX12 |
1/2 |
12.70 |
0.7 |
|
SMBLX58 |
5/8 |
15.88 |
0.8 |
|
SMBLX34 |
3/4 |
19.05 |
1.0 |
Screw type
Model |
For band width |
Thickness |
|
|
Inch |
mm |
mm |
|
|
SMBS14 |
1/4 |
6.35 |
1.5 |
|
SMBS38 |
3/8 |
9.53 |
1.8 |
|
SMBS12 |
1/2 |
12.70 |
2.0 |
|
SMBS58 |
5/8 |
15.88 |
2.5 |
|
SMBS34 |
3/4 |
19.05 |
2.5 |

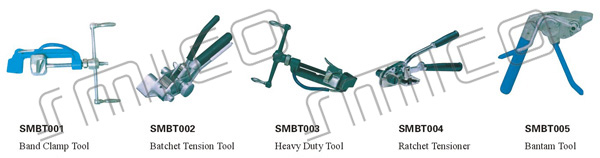

Application Tools
Model |
Description |
Weight |
|
SMBT001 |
Band clamp tool for use with bands up to 3/4"(19.05mm)wide |
2.0kg |
|
SMBT002 |
Ratchet tension tool for use with bands up to 3/4"(19.05mm)wide ,and also for all coated bands . |
1.8kg |
|
SMBT003 |
Heavy duty tool |
2.3kg |
|
SMBT004 |
Another type of ratchet tensioner for use with bands up to 3/4"(19.05)wide and also for all coated bands . |
1.8kg |
|
SMBT005 |
It can be used with one handle .For using with bands up to 3/4"(19.05mm)wide |
1.5kg |
