Power connectors

Code:SB
Cable Size:
Description:


Material:Brass
Surface treatment:Tin plated or copper plated on request
Product Property:It is used to branch or connect a erial hard copper conductor or insulated copper conductor.

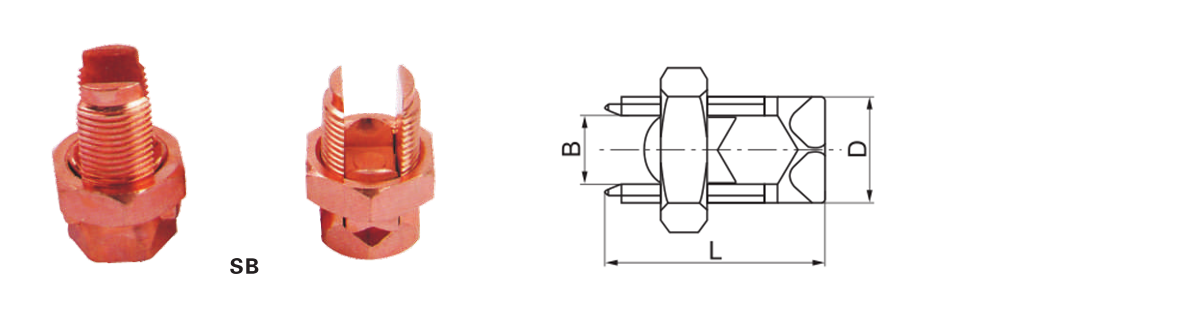

Type

Dimensions(mm)

L

D

B

Screw Thread

SB 16-35

38

17

8.5

5/8-18UNF-2A

SB 25-50

42

19

10

3/4-16UNF-2A

SB 50-70

46

21

11

3/4-16UNF-2A

SB 95-120

50

26

14.5

1-12UNF-2A

SB 150-185

60

30

17.2

1 3/16-12UNF-2A

SB 200-240

45

32

19.3

1 1/4-12UNF-2A

SB 10

27

13

5

1/220UNF-2A

SB 16

30

14

6

G1/4

SB 25

32

17

7

5/8-18UNF-2A

SB 35

38

17

8.5

5/8-18UNF-2A

SB 50

42

19

10

3/4-16UNF-2A

SB 70

46

21

11

3/4-16UNF-2A

SB 95

46

26

14.5

1-12UNF-2A

SB 120

50

26

16.5

1-12UNF-2A

SB 150

55

30

17.2

1 3/16-12UNF-2A

SB 185

60

30

19.3

1 3/16-12UNF-2A

SB 240

65

32



1 1/4-12UNF-2A
