Power connectors

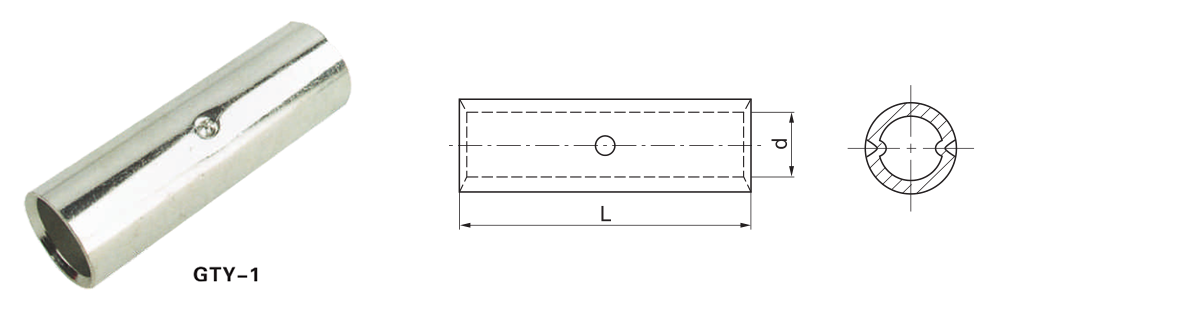

Code:GTY-1
Cable Size:
Description:


Material:E-Cu
Surface treatment:Tin-plated
Product property:Tin-plated
Product property:It is used to connect copper conductor joint.

Type

Dimensions(mm)

L

d

GTY-1-1.5

20

1.9

GTY-1-2.5

20

2.8

GTY-1-4

20

3.2

GTY-1-6

25

3.7

GTY-1-10

30

4.5

GTY-1-16

35

5.7

GTY-1-25

40

7.2

GTY-1-35

45

8.5

GTY-1-50

50

9.8

GTY-1-70

55

11.5

GTY-1-95

60

13.7

GTY-1-120

65

15

GTY-1-150

70

16.7

GTY-1-185

75

19.2

GTY-1-240

80

21

GTY-1-300

85

24

GTY-1-400

90

27

GTY-1-500

100

30

GTY-1-630

110

35

GTY-1-800

150

39

GTY-1-1000

170

44
