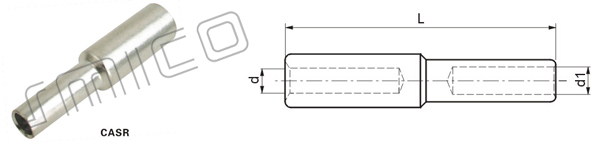

Power connectors

Type

Dimensions(mm)

L

d

d1

CASR6/4

30

4

3

CASR10/6

30

4.5

4

CASR16/6

40

5.5

4

CASR16/10

40

5.5

4.5

CASR25/6

40

7.5

4

CASR25/10

40

7.5

4.5

CASR25/16

50

7.5

5.5

CASR35/10

40

8.5

4.5

CASR35/16

55

8.5

5.5

CASR35/25

60

8.5

7.5

CASR50/10

45

9.5

4.5

CASR50/16

55

9.5

5.5

CASR50/25

55

9.5

7.5

CASR50/35

60

9.5

8.5

CASR70/16

60

11.5

5.5

CASR70/25

60

11.5

7.5

CASR70/35

65

11.5

8.5

CASR70/50

65

11.5

9.5

CASR95/25

65

13.5

7.5

CASR95/35

65

13.5

8.5

CASR95/50

70

13.5

9.5

CASR95/70

70

13.5

11.5

CASR120/35

70

15.5

8.5

CASR120/50

70

15.5

9.5

CASR120/70

75

15.5

11.5

CASR120/95

75

15.5

13.5

CASR150/50

70

16.5

9.5

CASR150/70

75

16.5

11.5

CASR150/95

80

16.5

13.5

CASR150/120

80

16.5

15.5

CASR185/70

75

18.5

11.5

CASR185/95

80

18.5

13.5

CASR185/120

85

18.5

15.5

CASR185/150

85

18.5

16.5

CASR240/95

85

21.5

13.5

CASR240/120

90

21.5

15.5

CASR240/150

90

21.5

16.5

CASR240/185

95

21.5

18.5

CASR300/120

95

23.5

15.5

CASR300/150

95

23.5

16.5

CASR300/185

100

23.5

18.5

CASR300/240

105

23.5

21.5

CASR400/150

110

26.5

16.5

CASR400/185

110

26.5

18.5

CASR400/240

125

26.5

21.5

CASR400/300

125

26.5

23.5

CASR500/185

115

30

18.5

CASR500/240

120

30

21.5

CASR500/300

125

30

23.5

CASR500/400

140

30

26.5

CASR630/240

120

34

21.5

CASR630/300

125

34

23.5

CASR630/400

140

34

26.5

CASR630/500

140

34

30

CASR800/400

150

39.5

26.5

CASR800/500

150

39.5

30

CASR800/630

150

39.5

34

CASR1000/500

150

44

30

CASR1000/630

150

44

34

CASR1000/800

165

44

39.5
