Power connectors

  • Insulation Piercing Connector
Power connectors

Code:GLL
Cable Size:
Description:


Material:Aluminum alloy
Surface treatment:Tin plated mini 15 microns

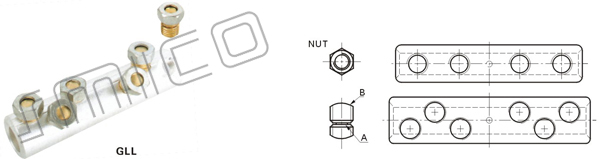

Product property:The bolt has two shear ends A and B(Note:A is shorter than B).the special design ensures perfect strength and electric conductors when installing you can choose the suitable end to screw and tighten it until it breaks the usage is easy and quick and its type test is in accordance with IEC61238-1

Type

Conducot cross-section(mm2)

shear head A or B

Number of bokts

GLL16-70

16-35
50-70

B
A

4

GLL95-150

95-120
150

B
A

4

GLL185-240

185
240

B
A

6
