Ratchet Cutter
Forged knife edge for long shelflife and easy cutting.
Compact and light for easy carrying.
Easy release and could stop at any position.
Ifkinife return is necessary during cutting,let the movable handlelock and against the prop tooth block,
then loosen the hand which gripes the handle,turn the swivel knife in counter clockwise.
Knives are resharpening or exchangeable.
The knife of XLJ-G-40W is made of alloy steel,good performance of wear resistance,long useful life.
Note:Cutting steel rope and steel baris strictly prohibited. |
|
Model |
Range of Application |
Length |
Weight |

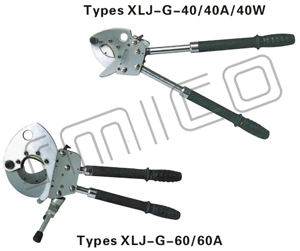

XLJ-G-40 |
1 Cutting steel stranded wire below 120mm2,Alcable steel reinforced blow 800mm2
Cutting steel-cored cable below Φ36mm,Low carbon steel bar below Φ14mm |
440mm(伸Extend 630mm) |
3.6kg |
XLJ-G-40A |
Cutting steelwire rope below Φ20mm2,cutting Cu-Al cable below Φ36mm |
440mm(伸Extend 630mm) |
3.6kg |
XLJ-G-40W |
Cutting steel stranded wire below 120mm2,Alcable steel reinforced blow 800mm2
Cutting steel-cored cable below Φ36mm,Low carbon steel bar below Φ14mm |
440mm(伸Extend 630mm) |
3.6kg |
XLJ-G-60 |
Cutting steel stranded wire below 150mm2,Alcable steel reinforced blow 1200mm2
Cutting steel-cored cable below Φ52mm,Low carbon steel bar below Φ16mm |
525mm(伸Extend 715mm) |
7.0kg |
XLJ-G-60A |
Cutting steelwire rope below Φ26mm2,cutting Cu-Al cable below Φ52mm |
525mm(伸Extend 715mm) |
7.0kg |
|
