Code:Suspension Composite Insulator
Cable Size:
Description:
Type |
Rated voltage(KV) |
Specified mechanical load |
Section length(mm) |
Min Arc distance(mm) |
Leakage distance(mm) |
Lightning impulse withstand BIL(KV0 |
Power frequency withstand(wet)(KV) |

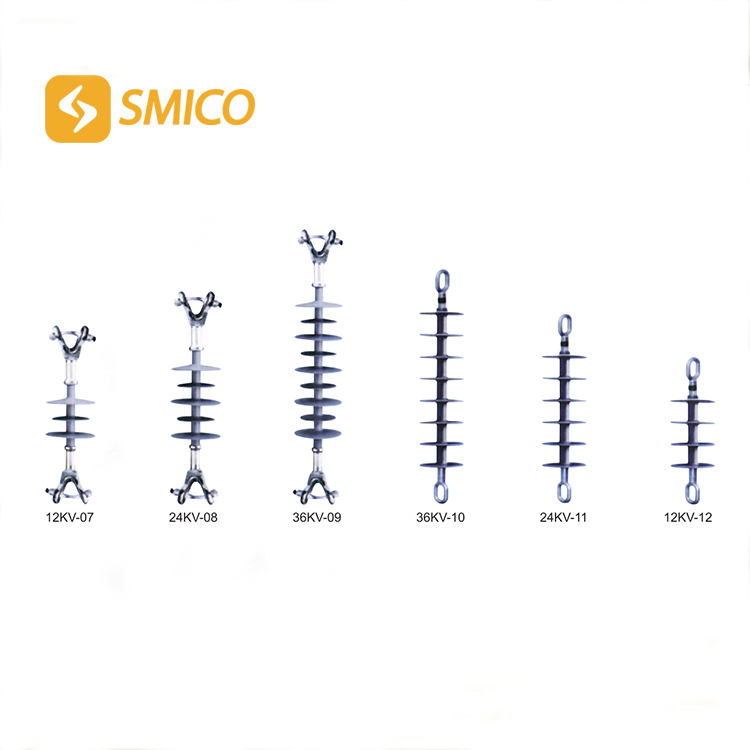

FXBW4-12/70 |
12 |
70 |
350 |
180 |
400 |
95 |
45 |
FXBW4-24/70 |
24 |
70 |
550 |
370 |
850 |
185 |
95 |
FXBW4-24/100 |
24 |
100 |
570 |
370 |
850 |
185 |
95 |
FXBW4-35/70 |
36 |
70 |
650 |
450 |
1000 |
230 |
105 |
FXBW4-35/100 |
36 |
100 |
670 |
450 |
1000 |
230 |
105 |
FXYW4-12/70 |
12 |
70 |
350 |
180 |
400 |
95 |
45 |
FXYW4-24/70 |
24 |
70 |
550 |
370 |
850 |
185 |
95 |
FXYW4-24/100 |
24 |
100 |
570 |
370 |
850 |
185 |
95 |
FXYW4-35/70 |
36 |
70 |
650 |
450 |
1000 |
230 |
105 |
FXYW4-35/100 |
36 |
100 |
670 |
450 |
1000 |
230 |
105 |

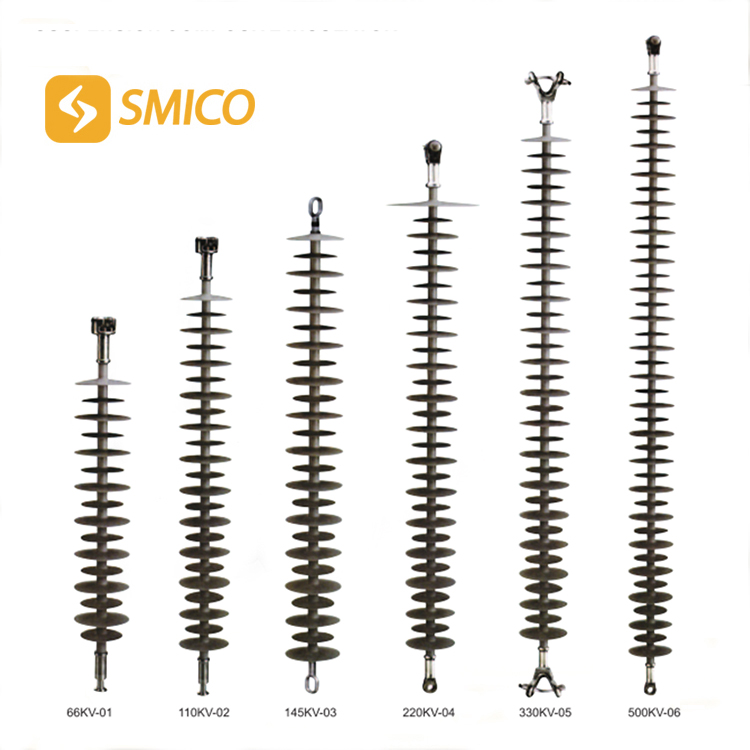

FPBW4-66/70 |
66 |
70 |
900 |
710 |
1980 |
410 |
185 |
FPBW4-66/100 |
66 |
100 |
940 |
710 |
1980 |
410 |
185 |
FPBW4-110/100 |
110 |
100 |
1240 |
1000 |
3315 |
550 |
230 |
FPBW4-145/120 |
145 |
120 |
1480 |
1240 |
4123 |
725 |
355 |
FPBW4-220/100 |
220 |
100 |
2240 |
1900 |
6300 |
1000 |
395 |
FPBW4-220/160 |
220 |
160 |
2240 |
1900 |
6300 |
1000 |
395 |
FPBW4-330/100 |
330 |
100 |
2990 |
2600 |
9075 |
1425 |
570 |
FPBW4-330/160 |
330 |
160 |
2990 |
2600 |
9075 |
1425 |
570 |
FPBW4-500/160 |
500 |
160 |
4080 |
3730 |
12750 |
2250 |
740 |
