Code:APDM-400A
Cable Size:
Description:
APDM 400-Single Phase switch for NH type fuses up to400A
General Description

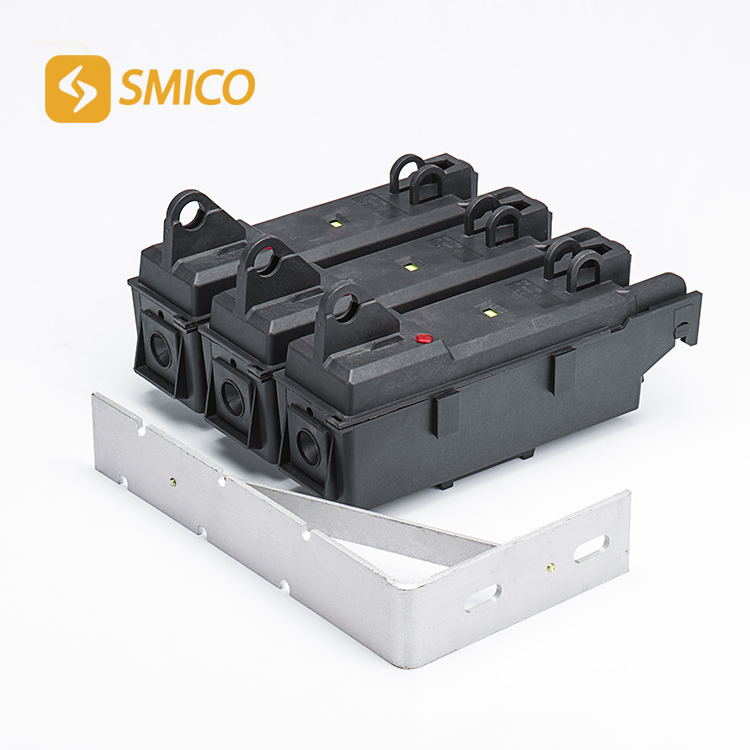

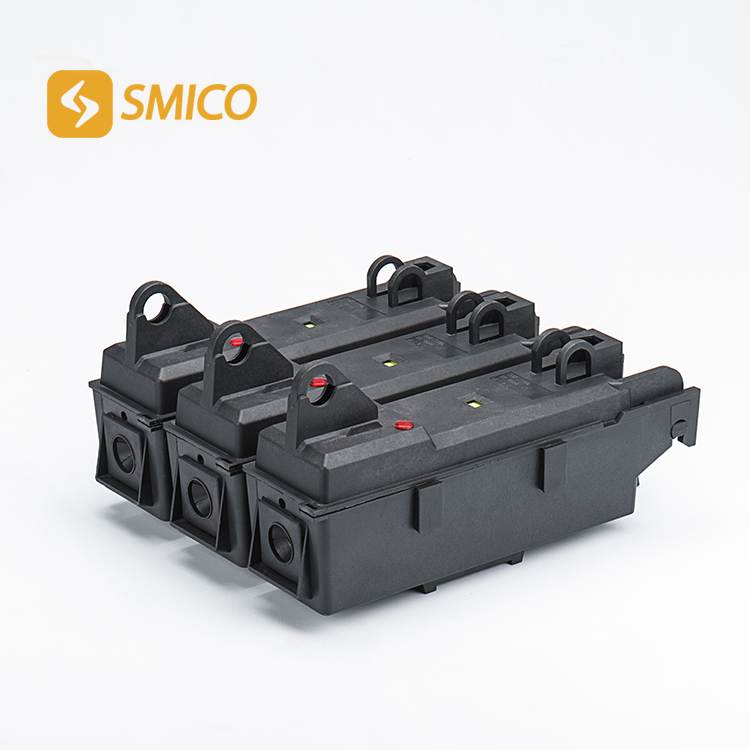

The LV fuse-switch disconnector APDM400 is capable of up to 400A fuse NH size 1 and 2,it is ideal for all secondary distribution protections.It could be connected with cable lugs(not included) or by connectors,configurable for unipolar operation,bipolar,tripolar etc.With devices for signaling and indication of operation and safety accessories to improve the operation of the equipment.
The switch fuse APDM400 has the following features included
Link Protector
Operating light the fuse
Indicator of installed fuse
Viewer characteristics of the fuse installed
Scalable safety inserts for siblings of bipolar-shaped section,pole,pole,ect..
Eyelets suitable for proper and safe opening and closing operation,assembly and disassembly of the cover.
Technical Characteristics
Voltage |
500V |
Insulation level |
1000V |
Frequency |
50/60Hz |
Operational current with fuse |
400A |
Operational current with blades |
630A |
Installation category |
AC22B |
Short lasting current (1s) |
12kA |
Dynamic current (crest ) |
50KA |
Interruption capacity |
100KA |
Minimum mechanical life (operation ) |
1000 |
Weight |
1.7KG |
Protection range |
IP24 |
