Cutout fuse

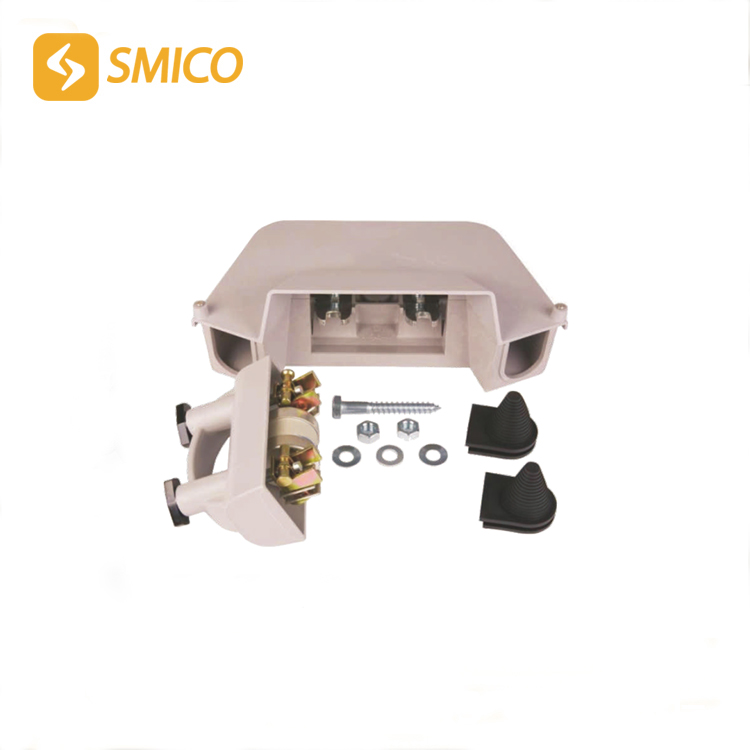

Fuse Service Equipment Pole Mounted Cutouts Rated at 400A

Our industry standard unit is a very popular model.

Designed with ease of use and simplicity in mind,this pole mountable fused cutout isthe ideal method of providing rural dwelliongswith a safe protected and reliable Low Voltage power supply.

Manufactured from our own track-resistantgrade of Glass Reinforced Polyester,this fused Cutout is unobtrusive in appearance,but robust for outdoor applications.

Each fused Cutout includes M12 captivestudes with nuts and washers for thereceotion of cable sockets(lugs)up tp 300mm(compression type only) with copper or aluminium conductors.

For ease of mounting to either a wall or a wooden pole,the fused cutout is supplied with an M12 coach screw.

• Robust and tough design using our own formulation of DMC.
• Slide fit front cover for ease of jointing.
• “Easy fit” studs accept cable sockets (lugs) up to 300mm.
• Designed to accept standard “J” type fuselinks.
• Fully compliant with the requirements of BS 7656:1993
• Fully meeting the design criteria of IP43.

Fuselinks
This fused Cutout is designed to accommodate standard wedge “J” type fuselinks to BS 88 with 82mm fixing centres.
Standard fuselink ratings range from 20 to 400A

Note: Fuselink not included.
