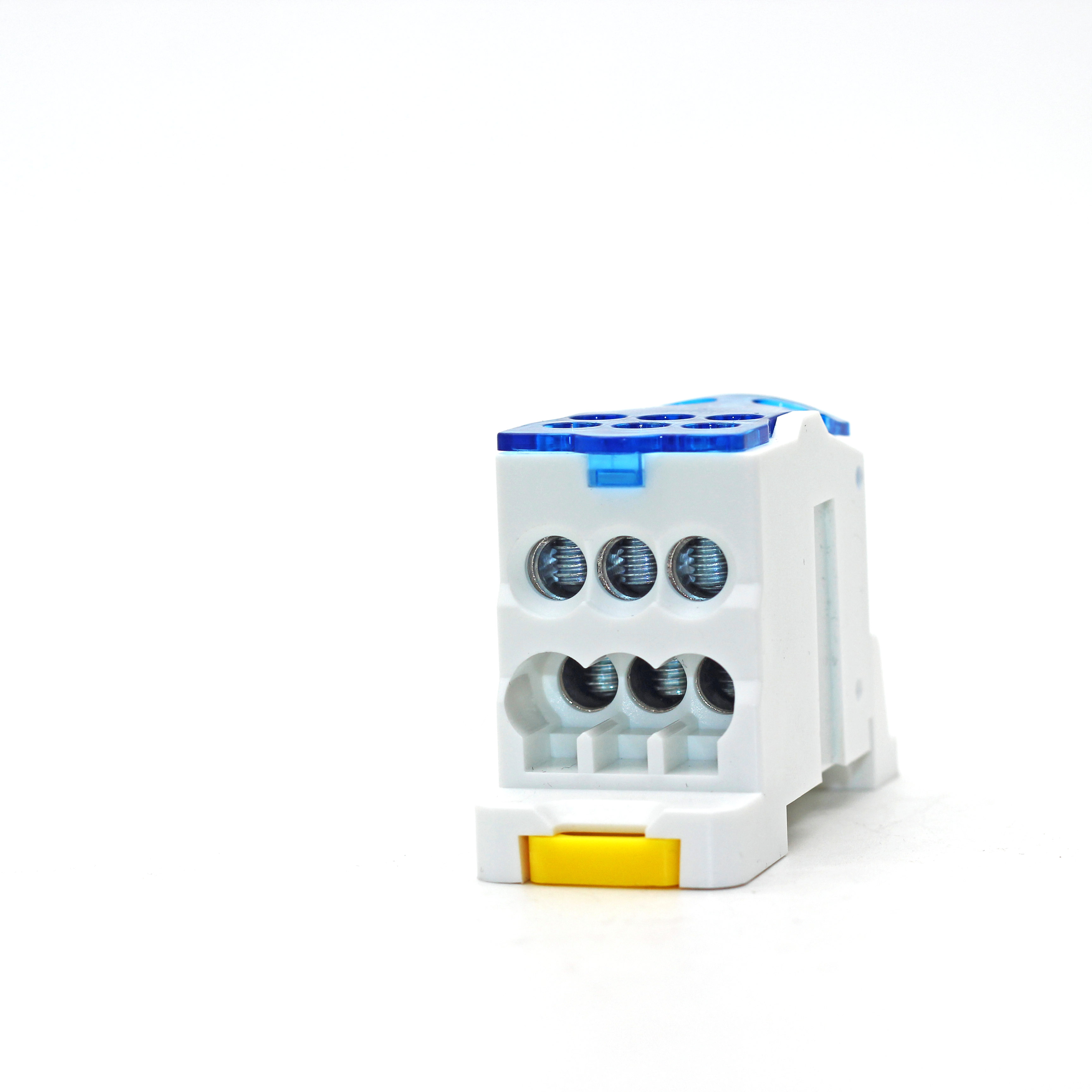

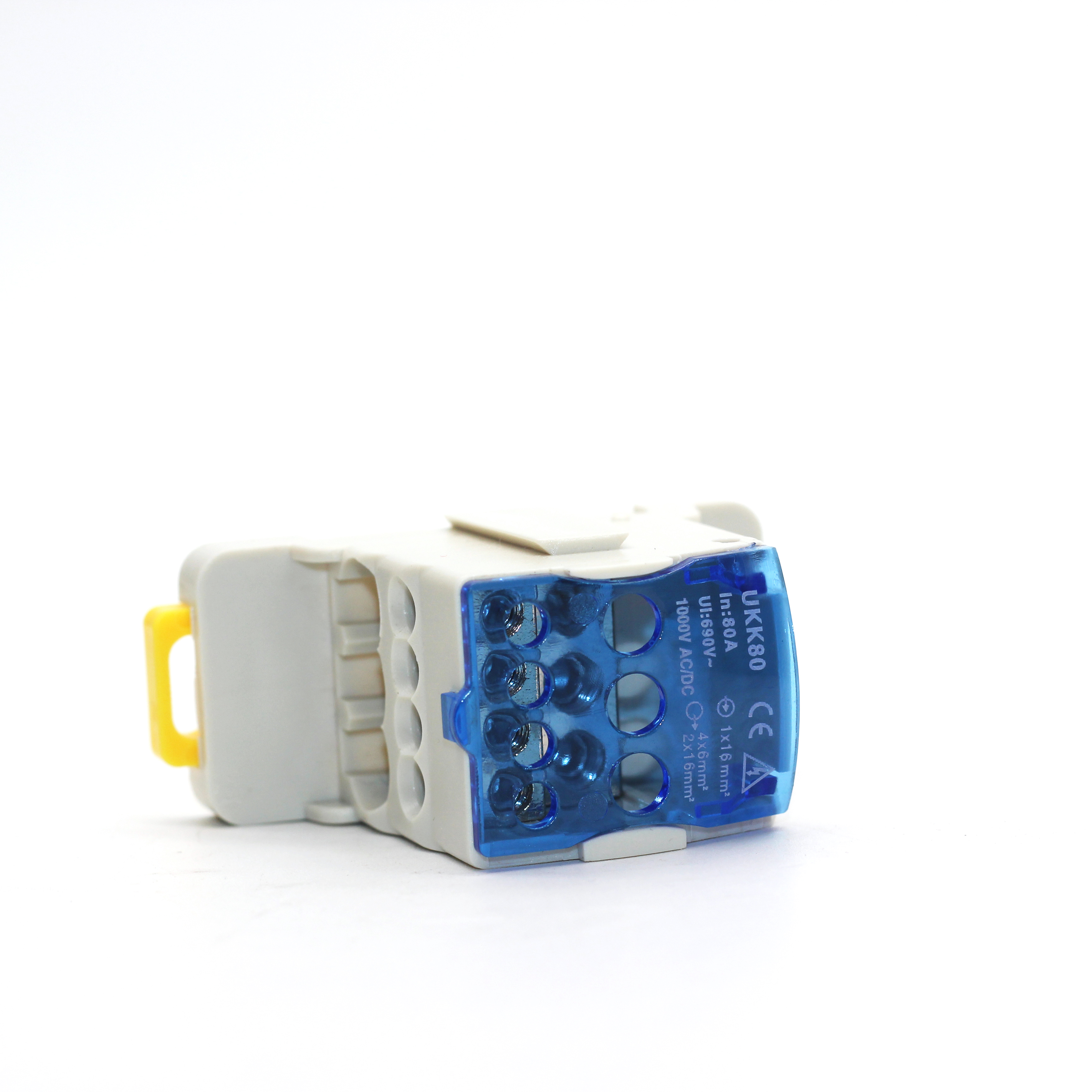

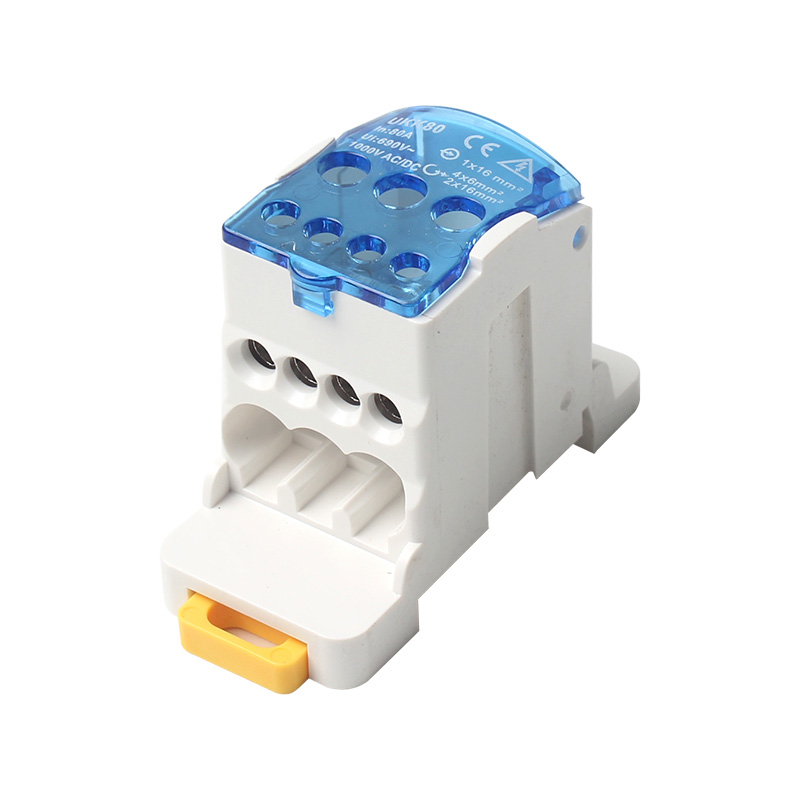

UKK80 80A Ukk series distribution box terminal blocks
Code:UKK 80
Cable Size:4*6mm2/2*16mm2
Description:
Introduction
The terminal block distribution box plays an important role in branching the mian line.Generally it is used for distribution
cabinet and various high voltage cabinet.An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs.It is always used with the din rail,so it is also named din rail terminal block.
Advantage
1. One terminal enters and multiple exits make wiring splitting simple and fast, improving work efficiency.
2. High-strength copper alloy crimping frame copper terminal block with better conductivity.
3. The cover can be opened and closed to make wiring more convenient. The transparent cover can see through whether the wiring is reliably connected.
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 80A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 66/29.3/47 |
| Rated Voltage/Current | 690V/80A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 1*16mm2 |
| Output Specification | 4*6mm2/2*16mm2 |
| Installation Mode | 35mm guide rail or Screw fixing |
| Weigth | 0.06KG |
| Standard | IEC 60947-7-1 |
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 125A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 66/29.3/47 |
| Rated Voltage/Current | 690V/80A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 1*16mm2 / 1*35mm2 |
| Output Specification | 6*16mm2 |
| Installation Mode | 35mm guide rail or Screw fixing |
| Weigth | 0.14KG |
| Standard | IEC 60947-7-1 |
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 160A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 75/29.4/47 |
| Rated Voltage/Current | 690V/160A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 1*16mm2 / 1*70mm2 |
| Output Specification | 6*16mm2 |
| Installation Mode | 35mm guide rail or Screw fixing |
| Weigth | 0.14KG |
| Standard | IEC 60947-7-1 |
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 250A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 96/47.3/50 |
| Rated Voltage/Current | 690V/250A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 1*16mm2 / 1*70mm2 |
| Output Specification | 6*16mm2 |
| Installation Mode | 35mm guide rail or Screw fixing |
| Weigth | 0.14KG |
| Standard | IEC 60947-7-1 |
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 400A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 96/47.3/50 |
| Rated Voltage/Current | 690V/400A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 1*185mm2 |
| Output Specification | 2*35mm2/5*16mm2/4*10mm2 |
| Installation Mode | 35mm guide rail or Screw fixing |
| Weigth | 0.4KG |
| Standard | IEC 60947-7-1 |
