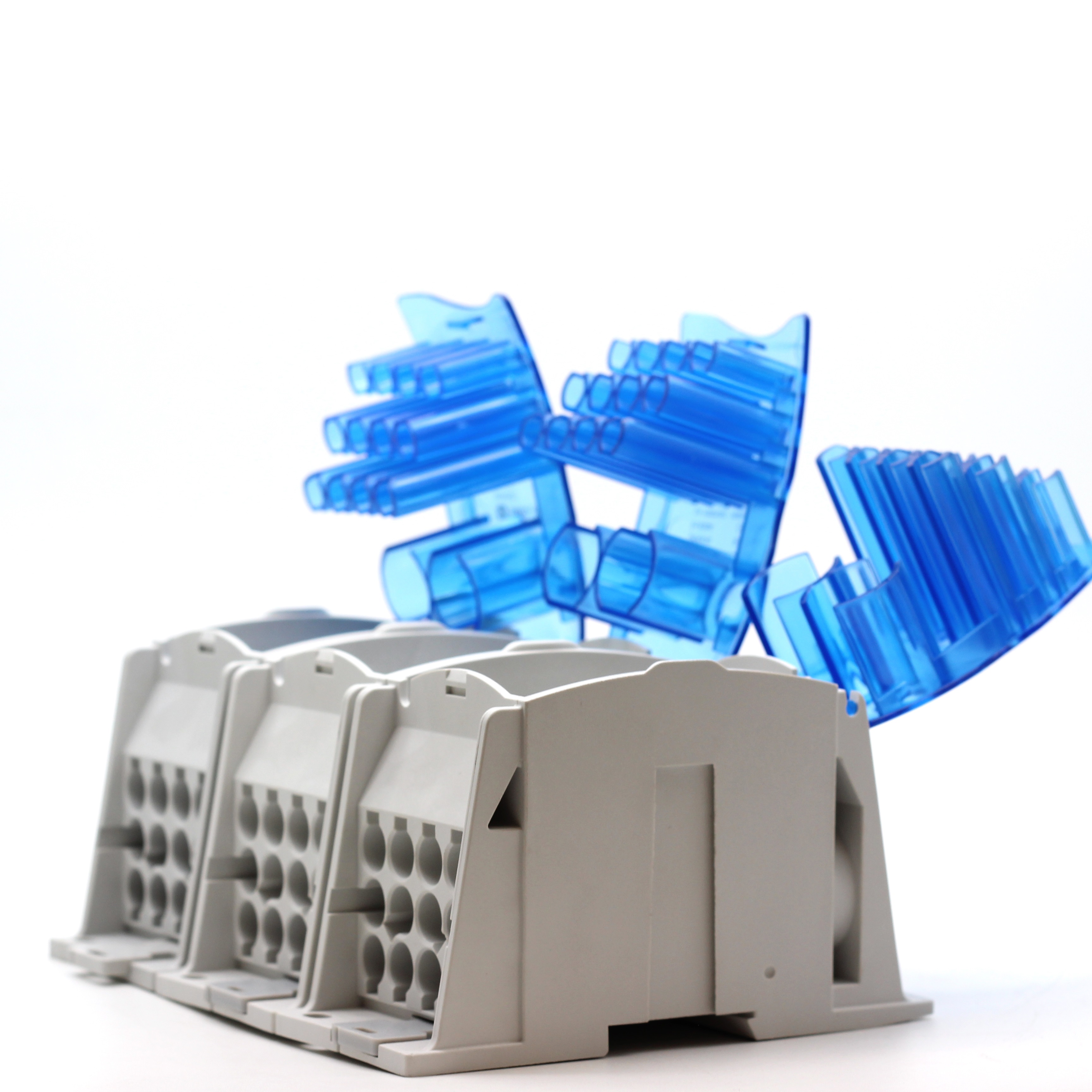

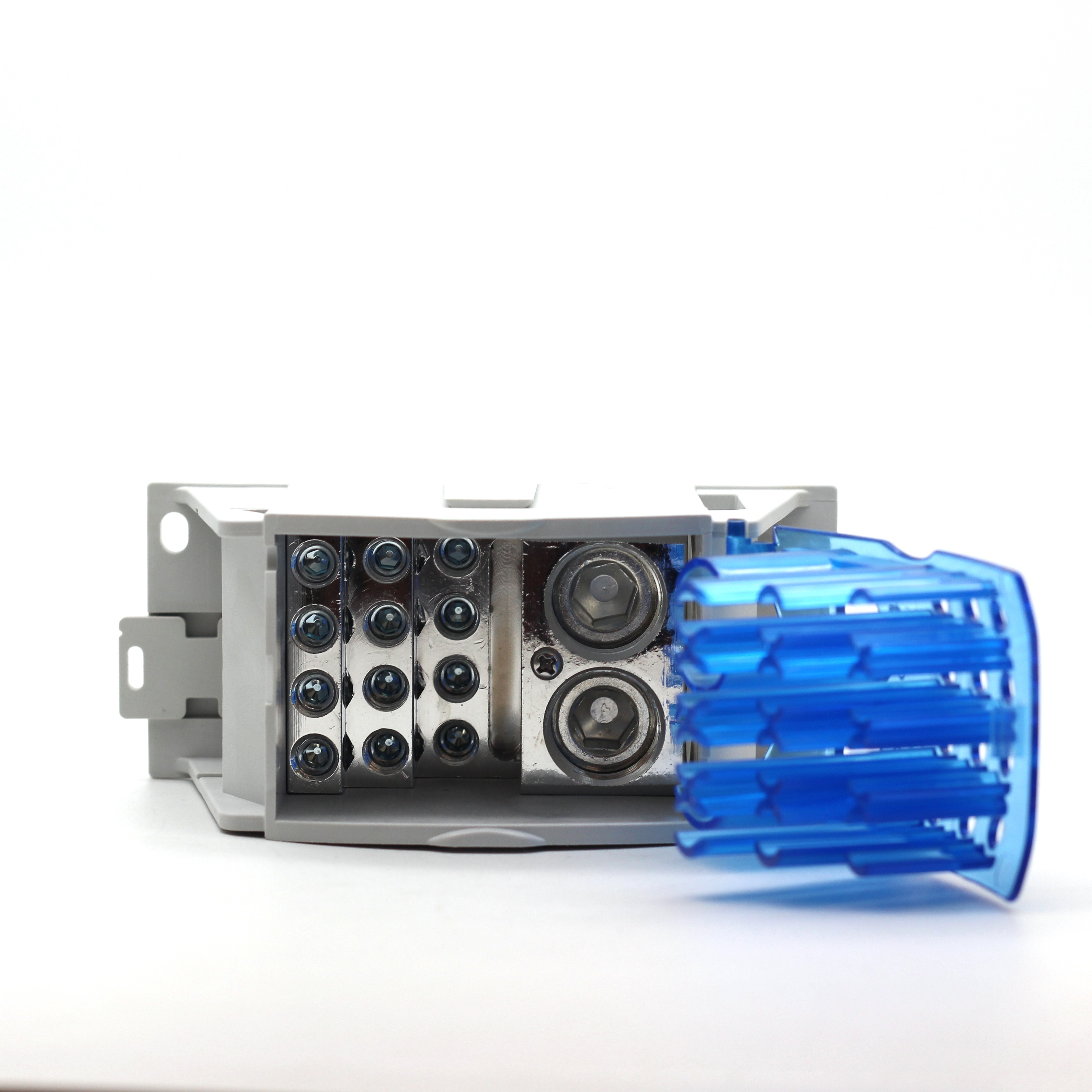

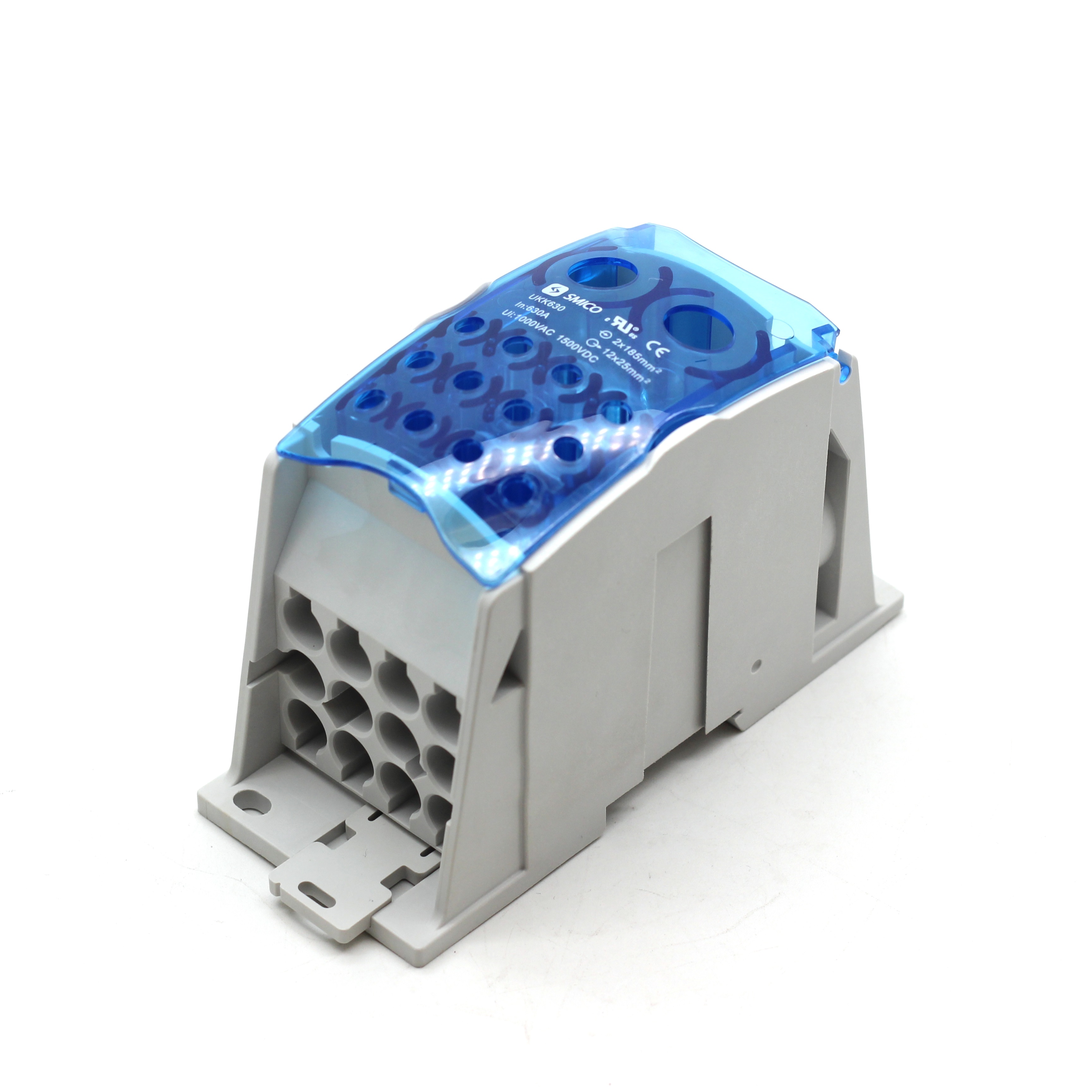

UKK 630A 1000V Din rail single pole power distribution blocks
Code:UKK630
Cable Size:
Description:
Introduction
These Single Pole UKK 630A Power Distribution Box Terminal Block have multiple approvals for use with aluminium and copper conductors. Also provides optional custom branding, and custom industrial packaging is also available for product delivery.
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 630A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 127/56.8/83 |
| Rated Voltage/Current | 1000V/630A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 2*(95-185)mm2 |
| Output Specification | 12*(4-25)mm2 |
| Standard | IEC 60947-7-1 |
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 125A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 66/29.3/47 |
| Rated Voltage/Current | 690V/80A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 1*16mm2 / 1*35mm2 |
| Output Specification | 6*16mm2 |
| Installation Mode | 35mm guide rail or Screw fixing |
| Weigth | 0.14KG |
| Standard | IEC 60947-7-1 |
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 160A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 75/29.4/47 |
| Rated Voltage/Current | 690V/160A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 1*16mm2 / 1*70mm2 |
| Output Specification | 6*16mm2 |
| Installation Mode | 35mm guide rail or Screw fixing |
| Weigth | 0.14KG |
| Standard | IEC 60947-7-1 |
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 250A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 96/47.3/50 |
| Rated Voltage/Current | 690V/250A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 1*16mm2 / 1*70mm2 |
| Output Specification | 6*16mm2 |
| Installation Mode | 35mm guide rail or Screw fixing |
| Weigth | 0.14KG |
| Standard | IEC 60947-7-1 |
| UKK SINGLE-STAGE BUS JUNCTION BOX | |
| Type | UKK 400A |
| Color | Blue and Gray |
| Length/Wide/Height(mm) | 96/47.3/50 |
| Rated Voltage/Current | 690V/400A |
| Connection Method | Screw Connection |
| Material | Flame resistant Nylon PA66,Brass conductor |
| Entry Specification | 1*185mm2 |
| Output Specification | 2*35mm2/5*16mm2/4*10mm2 |
| Installation Mode | 35mm guide rail or Screw fixing |
| Weigth | 0.4KG |
| Standard | IEC 60947-7-1 |
